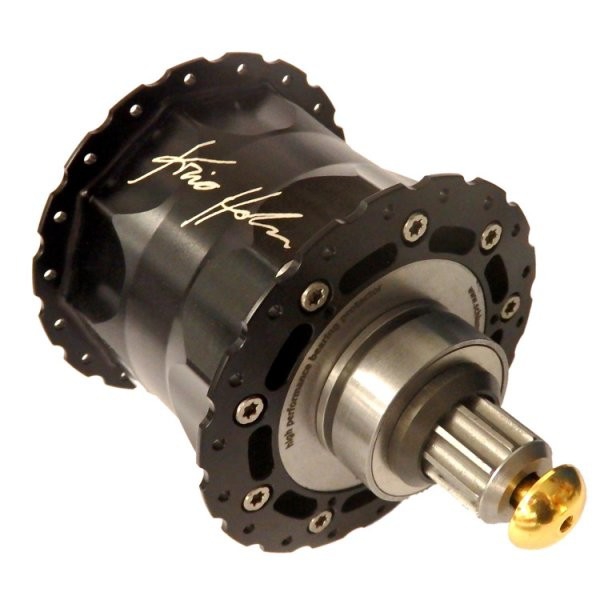

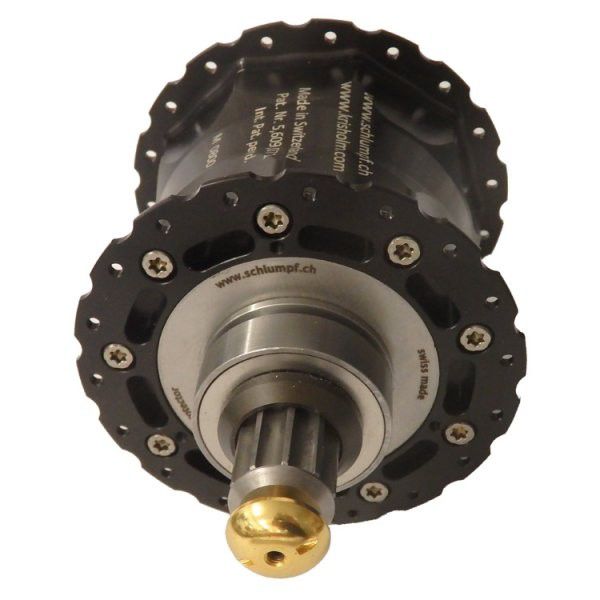

Kris Holm - Schlumpf Geared Unicycle Hub
- Product code: 809
- Brand: Kris Holm
- Weight: 1.42 Kg.
Price:
11500 ¥ PREORDER
PREORDER
MAKE AN ORDER RIGHT NOW
FREE SHIPPING
on orders over
600 RMB.
The official Wechat
micro program
独轮车商城.
Scan the code using
Wechat App.
The official Taobao
store 独轮中国.
Scan the code using
Taobao App.
Product Description
All Schlumpf hubs have two gear-ratios: Direct Drive 1:1 and Overdrive 1:1.5 - This means: a 20" wheel works like a 30" in high gear mode, or a 24" is like a 36", a 29" will run like a 44" and a 36" like a 54"!
You change gear by pushing the Gold or Silver coloured shift buttons (at the axle bolts), with a little practice you can change gear with your feet while riding.
This hub was developed in collaboration with Kris Holm, who spent over a year testing and refining the hub. This is why you find both the Kris Holm and the Schlumpf Innovations logos on the hub. This hub has been designed to be strong and robust enough for muni, and will cope with jumps of up to 5 feet (1.5m) - depending of your style of jumping and landing!

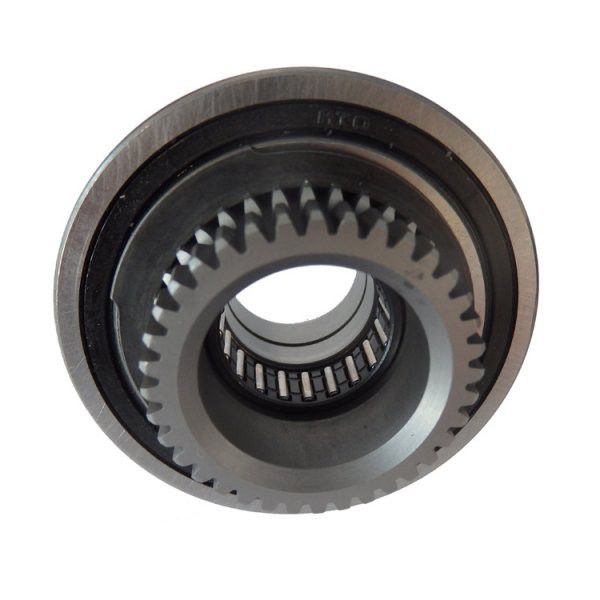

The KH-Schlumpf hub comes with a knurled surface on the left bearing holders: this surface, clamped tight in the bearing cups of the frame, holds the reaction torque of the planetary gearing system. Gear shift buttons and shifting shaft are made of strong steel with reinforced design to withstand even hard off-road use. The hubs are sealed against dust and water spray. Every hub comes with a lubrication hole sealed with a screw, Schlumpf recommends lubricating at least once a year.
Schlumpf upgraded the hub over the years. The 2015 version comes with more lateral space, allows installation in most frames without any adaption of frames.
Features
Axle System: ISIS
Color: Black
Diameter Axle: 22mm
Bearing pitch: 100mm (center - center)
Spoke holes: 36
Bearing wide: 12mm
Bearing Diameter outside: 42mm
Bearing Diameter inside: 22mm
Gear Ratios: 1:1 and 1:1.5
Crank bolts: M12 incl. hole for the shifting shaft (6mm Allen key)
Weight (incl. bolds/Shift Button): Soon
Incl. Shift Button, Bolts and Tools
