Nimbus ISIS Disc Steel Hub - 36 Hole (100mm)
- Product code: 461
- Brand: Nimbus
- Weight: 0.659 Kg.
Price:
550 ¥ IN STOCK
BUY
MAKE AN ORDER RIGHT NOW
FREE SHIPPING
on orders over
600 RMB.
The official Wechat
micro program
独轮车商城.
Scan the code using
Wechat App.
The official Taobao
store 独轮中国.
Scan the code using
Taobao App.
Product Description

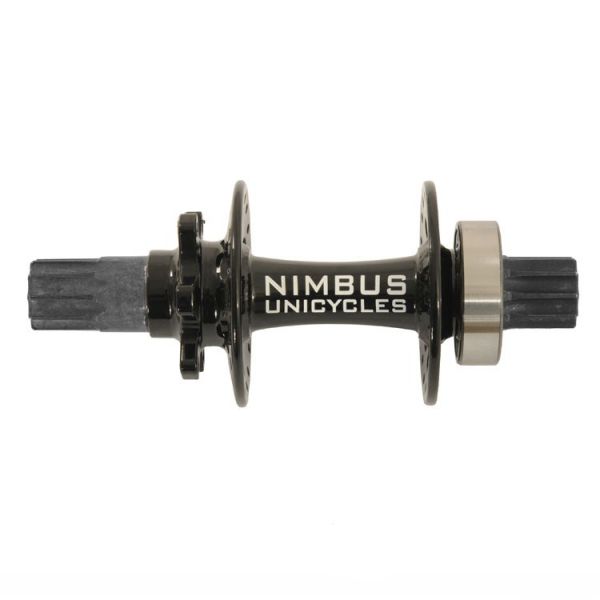

The Nimbus ISIS Disc Steel Hub - 36 Hole (100mm) is a super robust hub designed to be both long lasting and low maintenance.
The Nimbus ISIS Disc Steel Hub as fitted to the latest Nimbus Muni. This hub comes with the standard disc mount.
Features
Features:* ISIS spline is strong and creak free
* Tempered 4130 CrMo spindle
* Wide flange spacing for increased wheel strength.
* Flange material hardness and shape are designed to maximise spoke strength.
* Sealed, 42mm bearings with standard 100mm spacing
* 36 spoke holes

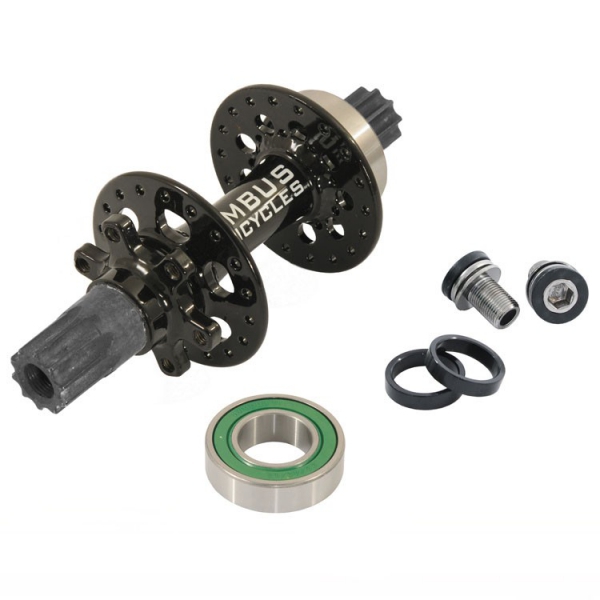

* Comes with pair of ISIS bolts.
* Weighs: 659g (inc. bearings, bolts and spacers)
Note: this hub will not fit in frames with machined bearing housing designed for 40mm bearings. It requires either pressed bearing housings or frames machined to take these larger bearings.
Hub flange width centre to flange (disc) = 17.4mm
Hub flange width centre to flange (non disc) = 36.6mm
Hub flange Diameter (D) = 55.8mm
Hub hole Diameter (S) = 2.6mm
