Nimbus ISIS Disc Alu Hub - 36 Hole (125mm)
- Product code: 836
- Brand: Nimbus
- Weight: 0.38 Kg.
Price:
1000 ¥ IN STOCK
BUY
MAKE AN ORDER RIGHT NOW
FREE SHIPPING
on orders over
600 RMB.
The official Wechat
micro program
独轮车商城.
Scan the code using
Wechat App.
The official Taobao
store 独轮中国.
Scan the code using
Taobao App.
Product Description
Nimbus ISIS Disc Alu Hub - 36 Hole (125mm) is a super lightweight hub designed to be both long lasting and low maintenance.
Features
Nimbus ISIS Disc Alu Hub - 36 Hole (125mm) as fitted to the Nimbus Oracle 32" and 36". This is a super high quality aluminium creak free hub that comes with the standard disc mount.
Features:
* ISIS spline is strong and creak free
* Machined from a single billot of hardened 7075 aluminium.
* Wide flange spacing for increased wheel strength.
* Flanges are dished to give the spokes optimium strength.
* Sealed, 42mm bearings with standard 125mm spacing
* 36 spoke holes

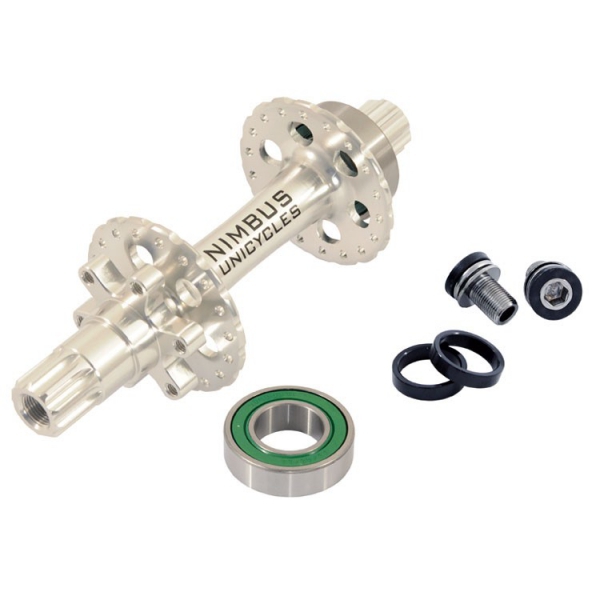

* Comes with pair of ISIS bolts.
* Weighs: 380g (inc. bearings, bolts and spacers)
Note: this hub will not fit in frames with machined bearing housing designed for 40mm bearings. It requires either pressed bearing housings or frames machined to take these larger bearings.
Hub flange width centre to flange (disc) = 29.5mm
Hub flange width centre to flange (non disc) = 49.5mm
Hub flange Diameter (D) = 55.8mm
Hub hole Diameter (S) = 2.8mm
